Frameless Torque Motor / RI85-PH KV85
RI85-PH KV85 Frameless Inrunner Torque Motor
A potted, frameless inner-rotor torque motor built for structural integration and dynamic response in robotic joints, exoskeletons and lightweight mobile platforms.
5 Nm
Peak Torque
2 Nm
Rated Torque
4080 rpm
No-load Speed
85
KV
Product Overview

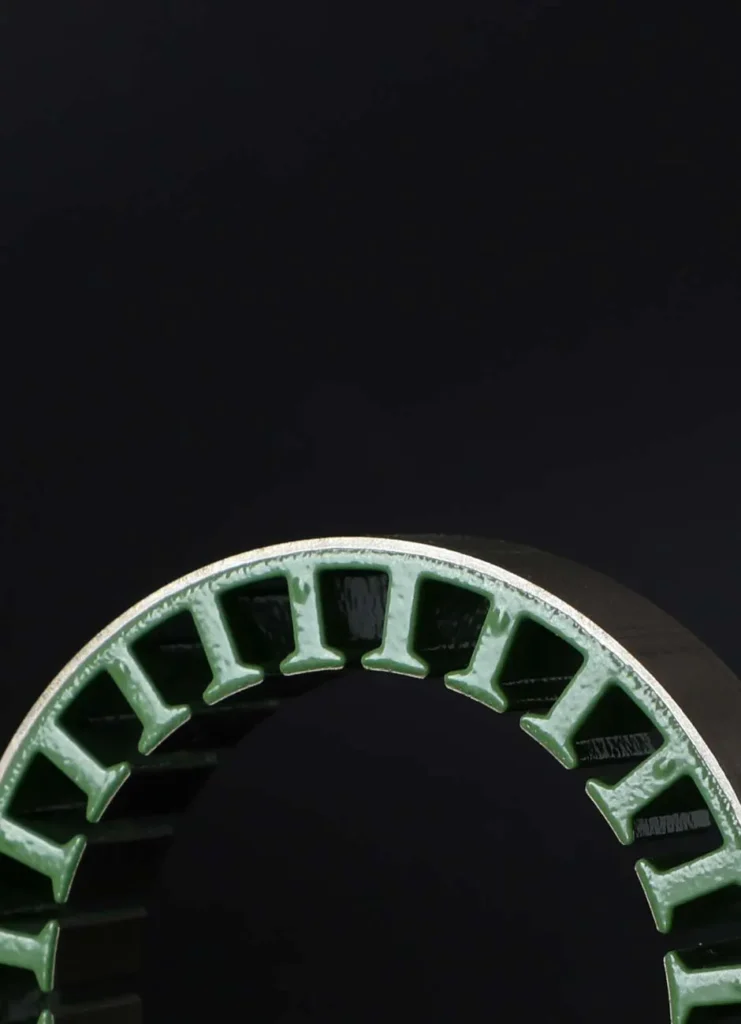

Compact potted torque
The CubeMars RI85-PH KV85 encapsulates its windings and internal components with potting compound to boost resistance to vibration, thermal stress and environmental exposure, improving lifespan and stability.
An optimised electromagnetic design raises torque and power density by around 25 percent, while a thinner iron core keeps the overall size compact with a 52 mm through-hole for flexible frameless integration.
Features & Benefits
Compact potted torque
A lightweight frameless motor with integrated sensing.
Potting Construction
Robust against moisture, vibration and heat.
High Density
More torque and power in a small size.
Integrated Sensors
Hall and temperature sensors built in.
Compact Core
Thinner iron core for tight spaces.
52 mm Through-hole
Room for cabling and shafts.
Frameless
Custom mounts, flanges and interfaces.
Technical Specifications
RI85-PH KV85 Specifications
Verified CubeMars manufacturer specifications for the RI85-PH KV85.
Applications
Where the RI85-PH works
Built for lightweight, responsive joints.
Robotic Joints
Compact direct-drive actuation.
Exoskeletons
Lightweight sensored joints.
Collaborative Arms
Smooth, embedded torque.
Mobile Platforms
Reliable, compact drive.
Why Choose This Product
Why the RI85-PH
Rugged
Potted for reliability.
Compact
Thin, lightweight 411 g body.
Sensored
Hall and temperature feedback.
Support
Robomatek engineering assistance included.
Ready to integrate the RI85-PH KV85?
Talk to our robotics specialists for availability, lead time, and integration support.
