Frameless Torque Motor / RI60 KV120

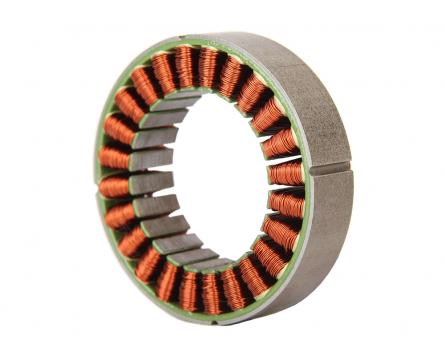

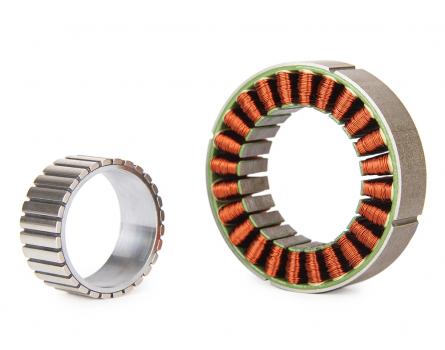

RI60 KV120 Frameless Inrunner Torque Motor
An ultra-compact, high-precision inner-rotor frameless torque motor with strong torque density and low cogging for lightweight cobot and exoskeleton joints.
1.63 Nm
Peak Torque
0.57 Nm
Rated Torque
5064 rpm
No-load Speed
155.9 g
Weight
Product Overview
Compact frameless power
The CubeMars RI60 KV120 is an ultra-compact inner-rotor frameless torque motor from the RI series, ideal for exoskeletons, cobots and lightweight robotic joints. It runs on 24, 36 or 48 V and delivers about 0.57 Nm continuous and up to 1.63 Nm peak torque from just 156 g.
Low cogging torque gives smooth operation, while the frameless architecture and compact form factor make it easy to embed into tight assemblies. An optional Hall sensor enables accurate closed-loop feedback.
Features & Benefits
Compact frameless power
High torque density and smooth motion in a slim, embeddable package.
High Torque Density
Strong output from a compact frameless body.
Ultra-Low Cogging
Smooth, silky rotation for precise low-speed control.
Frameless Architecture
Customise supports, flanges and bearings for a perfect fit.
Wide Voltage Range
Runs from 24 V to 48 V for flexible integration.
Compact and Light
A slim D60 x 23 mm body at just 155.9 g.
Optional Hall Sensor
Add Hall sensors for accurate closed-loop feedback.
Technical Specifications
RI60 KV120 Specifications
Verified CubeMars manufacturer specifications for the RI60 KV120.
Applications
Where the RI60 KV120 works
Built for compact, high-precision rotary joints.
Collaborative Arms
Embeddable joint motor for precise manipulator motion.
Exoskeletons
Lightweight, high-torque joints for wearable robotics.
Robotic Joints
Direct-drive articulation for legged and quadruped robots.
Precision Automation
Smooth, responsive rotation for automation equipment.
Why Choose This Product
Smooth, compact, embeddable
Silky Motion
Ultra-low cogging for high-precision control.
Frameless Fit
Integrate directly into your own mechanical design.
Lightweight
Just 155.9 g keeps joint inertia low.
Support
Robomatek assists with integration and control.
Ready to integrate the RI60 KV120?
Talk to our robotics specialists for availability, lead time, and integration support.
