Gimbal Motor / GL40 II KV82.5

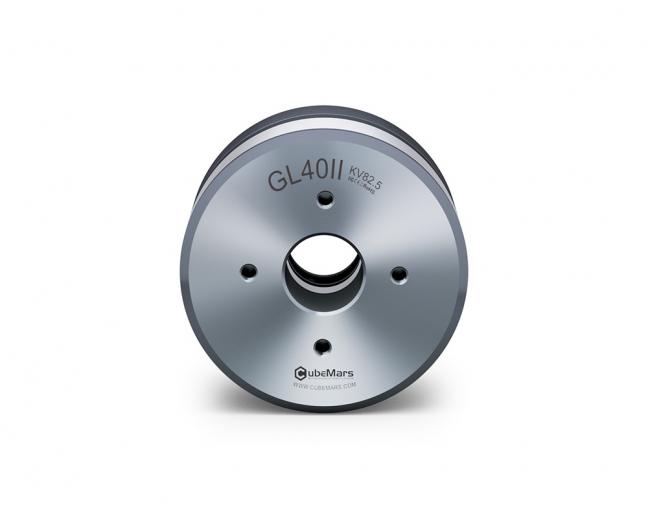

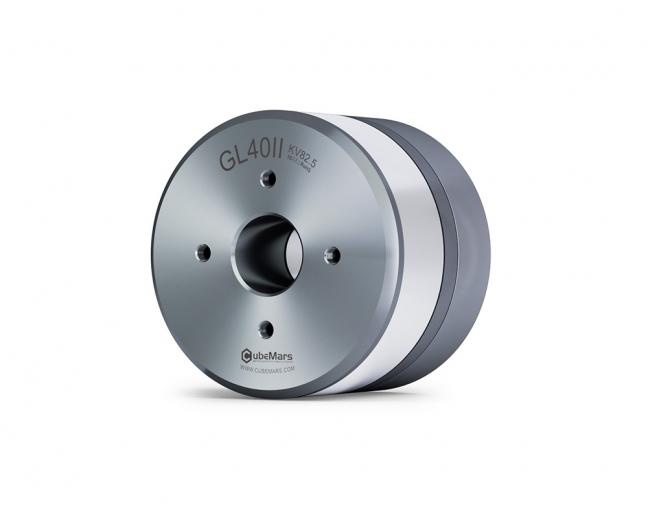

GL40 II KV82.5 Gimbal Motor

A next-generation GL II gimbal motor with an integrated hollow driver board, CAN and PWM control and three control modes, engineered for smooth, low-noise stabilisation.

0.68 Nm

Peak Torque

0.25 Nm

Rated Torque

1388 rpm

No-load Speed

125 g

Weight

Product Overview

Smooth, integrated gimbal power

The CubeMars GL40 II KV82.5 is a compact GL II-series gimbal motor built for high-end gimbal systems, radar and other precision rotating applications. An integrated hollow driver board supports CAN and PWM communication with three control modes (MIT, position-speed and speed).

Optimised electromagnetics reduce cogging torque by about 30% for smooth, low-noise motion, while the hollow shaft makes internal cable routing simple. At just 125 g it fits easily into space-constrained builds.

Features & Benefits

Smooth, integrated gimbal power

Low cogging and an onboard driver for precise, ready-to-run motion.

Ultra-Low Cogging

Cogging reduced about 30% for smooth, low-noise motion.

Integrated Driver

A hollow driver board supports CAN and PWM communication.

Three Control Modes

MIT, position-speed and speed modes for flexible control.

Hollow Shaft

A hollow shaft simplifies internal cable routing.

Compact and Light

A small, lightweight body for tight gimbal builds.

High Precision

Optimised electromagnetics for high-end stabilisation.

Technical Specifications

GL40 II KV82.5 Specifications

Verified CubeMars manufacturer specifications for the GL40 II KV82.5.

Peak torque0.68 Nm

Rated torque0.25 Nm

No-load speed1388 rpm

Rated speed697 rpm

KV82.5 rpm/V

Torque constant (Kt)0.11 Nm/A

Rated voltage16 V

Rated power19 W

Rated current1.88 A

Peak current5.22 A

Phase-to-phase resistance3000 mOhm

Phase-to-phase inductance1320 uH

Pole pairs14

Winding typeStar

Drive methodFOC

Insulation classH

Weight125 g

Motor dimensionsD46.1 x 33.5 mm

Operating temperature-20 to 50 C

ApplicationGimbal, radar, precision rotation

Applications

Where the GL40 II KV82.5 works

Built for smooth, precise rotary motion.

Camera Gimbals

Smooth stabilisation for high-end imaging.

Autonomous Sensors

Rotating LiDAR and perception heads.

Scanning Modules

Precise rotation for scanning and inspection.

Precision Rotation

High-accuracy positioning in optical equipment.

Why Choose This Product

Smooth, precise, ready to run

Silky Motion

Low cogging for high-precision control.

Ready to Run

An integrated driver speeds up deployment.

Compact

Lightweight for tight installations.

Support

Robomatek assists with control setup.

Ready to integrate the GL40 II KV82.5?

Talk to our robotics specialists for availability, lead time, and integration support.
