AKH70-48 V1.0 KV41 Hollow Shaft Planetary Actuator

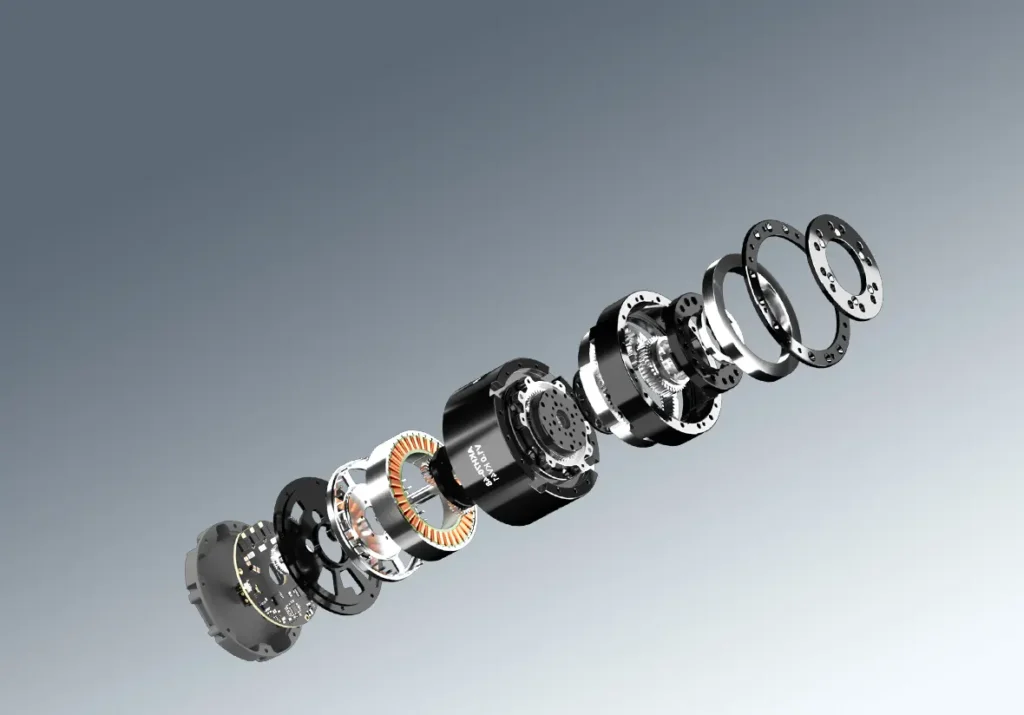

A highly integrated AKH-series hollow-shaft planetary actuator combining a brushless motor, three-stage 48:1 gearbox, dual 21-bit encoders and an onboard driver, with a 7 mm through-bore for internal cable routing.
222 Nm
Peak Torque
74 Nm
Rated Torque
35 rpm
No-load Speed
48:1
Reduction
Product Overview
High-torque hollow-shaft joint
The CubeMars AKH70-48 V1.0 delivers 74 Nm continuous and up to 222 Nm peak torque at 1396 g, a torque density of about 159 Nm/kg. A three-stage 48:1 planetary gearbox and dual 21-bit encoders provide high output with predictable, accurate closed-loop motion.
A 7 mm hollow shaft lets power and signal cables route through the centre, reducing external wiring, and dual CAN interfaces allow multiple actuators to be daisy-chained on one bus for complex robotic arms and legged robots.
Features & Benefits
High-torque hollow-shaft joint
A compact planetary module for demanding joints.
222 Nm Peak
159 Nm/kg torque density.

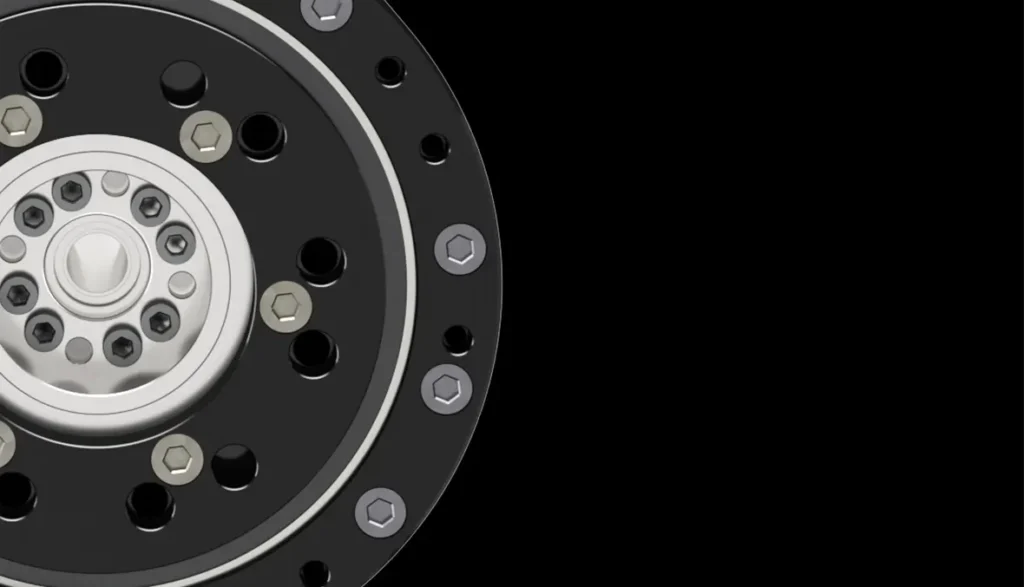

7 mm Hollow Bore
Route cables through the centre.
48:1 Planetary
Three-stage high-reduction gearbox.
Dual 21-bit Encoders
Motor and output feedback, power-loss memory.
Dual CAN Daisy-Chain
Simplified multi-actuator wiring.
Protected
Overcurrent, overvoltage and thermal safety.
Technical Specifications
AKH70-48 V1.0 KV41 Specifications
Verified CubeMars manufacturer specifications for the AKH70-48 V1.0 KV41.
Applications
Where the AKH70-48 works
Built for high-torque robotic joints.
Legged Robots
High-torque hip and knee joints.
Exoskeletons
Powerful assistive actuation.
Robotic Arms
Daisy-chained multi-joint drive.
AGVs
Rugged, integrated drive.
Why Choose This Product
Why the AKH70-48
Powerful
222 Nm peak torque.
Hollow Shaft
7 mm cable routing bore.
Precise
Dual 21-bit encoders.
Support
Robomatek engineering assistance included.
Ready to integrate the AKH70-48 V1.0 KV41?
Talk to our robotics specialists for availability, lead time, and integration support.
