Quasi-Direct-Drive Motor / AKE60-8 KV80
AKE60-8 KV80 Quasi-Direct-Drive Actuator
The smallest of the AKE family, this quasi-direct-drive module packs a brushless motor and 8:1 planetary gearbox into a 260 g body for space- and weight-sensitive robotic joints.
12.5 Nm
Peak Torque
5 Nm
Rated Torque
240 rpm
No-load Speed
8:1
Reduction
Product Overview
Tiny, precise QDD
The CubeMars AKE60-8 KV80 delivers 12.5 Nm peak torque at just 260 g, giving a torque density of about 46 Nm/kg with backlash controlled to roughly 9 arcmin for accurate, high-response control.
Its lightweight, compact structure and bidirectional mounting suit exoskeletons, robotic joints and collaborative robots where space and weight are at a premium.
Features & Benefits
Tiny, precise QDD
A featherweight actuator for compact robotic joints.
Featherweight
12.5 Nm peak from only 260 g.
9 arcmin Backlash
High-precision control.

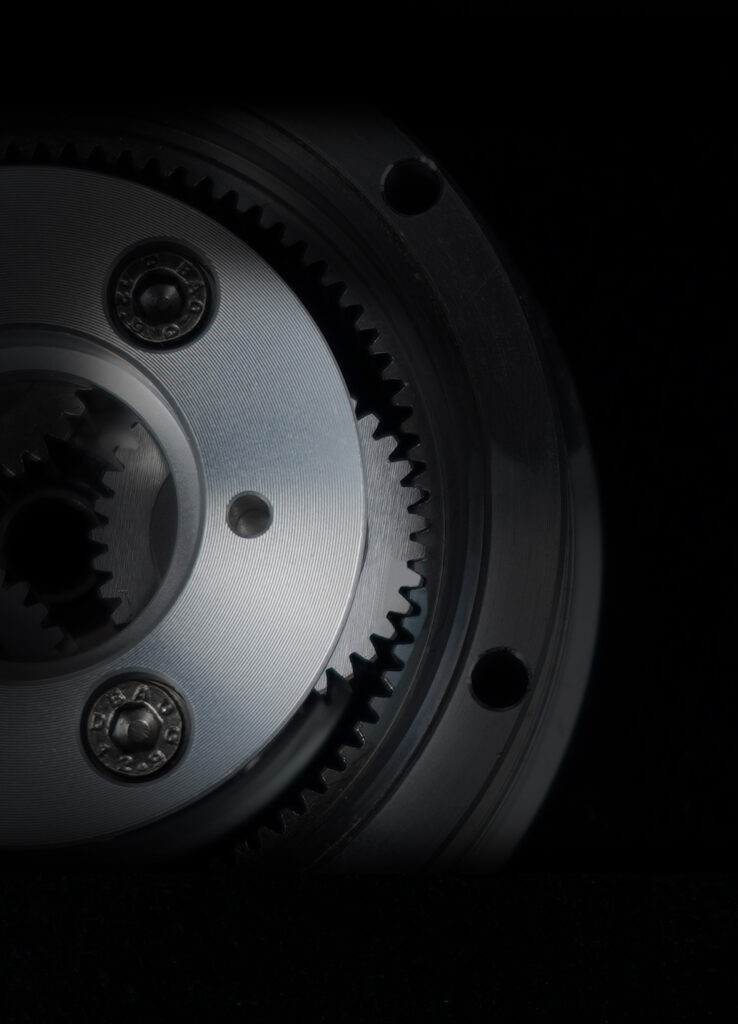

Integrated 8:1
Motor and planetary reducer combined.
Bidirectional Mount
Flexible two-direction installation.

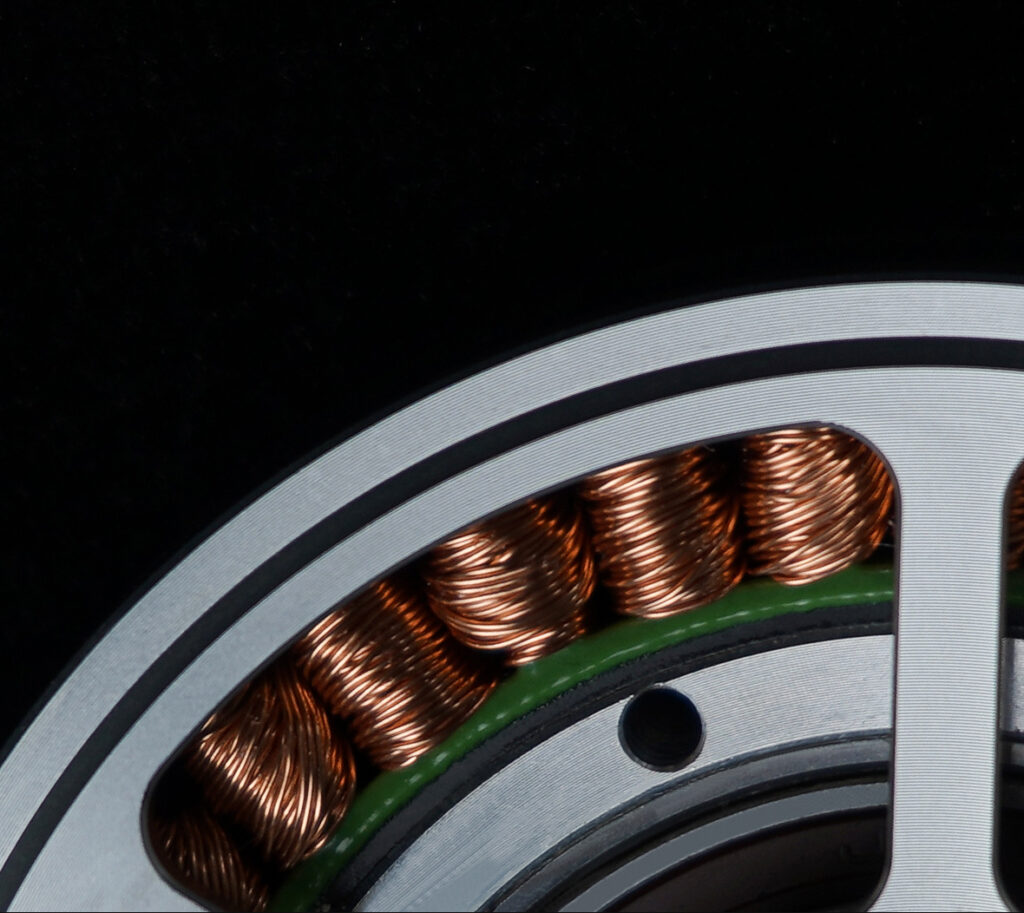

Efficient
Optimised winding for lower heat.
Compact Joints
Ideal for space-limited systems.
Technical Specifications
AKE60-8 KV80 Specifications
Verified CubeMars manufacturer specifications for the AKE60-8 KV80.
Applications
Where the AKE60-8 works
Built for the most compact robotic joints.
Exoskeletons
Compact assistive joints.
Cobot Wrists
Small, precise manipulator joints.
Small Robots
Lightweight joint actuation.
Research
Miniature QDD modules.
Why Choose This Product
Why the AKE60-8
Featherweight
260 g module.
Precise
9 arcmin backlash.
Flexible
Bidirectional mounting.
Support
Robomatek engineering assistance included.
Ready to integrate the AKE60-8 KV80?
Talk to our robotics specialists for availability, lead time, and integration support.
