Robotic Actuator / AKA60-6 KV80
AKA60-6 KV80 Robotic Actuator
A compact AKA-series drive module with reinforced load-bearing, raising radial load capacity to about 18 kg, roughly 52 percent higher than the AK60-6 under similar torque, in a light 460 g package.
9 Nm
Peak Torque
3 Nm
Rated Torque
640 rpm
No-load Speed
6:1
Reduction
Product Overview
Compact, high-load drive
The CubeMars AKA60-6 KV80 is a modular quasi-direct-drive actuator designed for high radial load on wheeled robots and AGVs. Its redesigned structure increases radial load capacity to around 18 kg, about 52 percent higher than the AK60-6.
Motor, planetary gearbox, driver and a 14-bit magnetic encoder are integrated in one 460 g unit. A new 2+5 PIN connector simplifies wiring, and wide 24/48 V operation with servo and MIT modes suits space-constrained mobile platforms.
Features & Benefits
Compact, high-load drive
A light AKA module for small mobile robots.

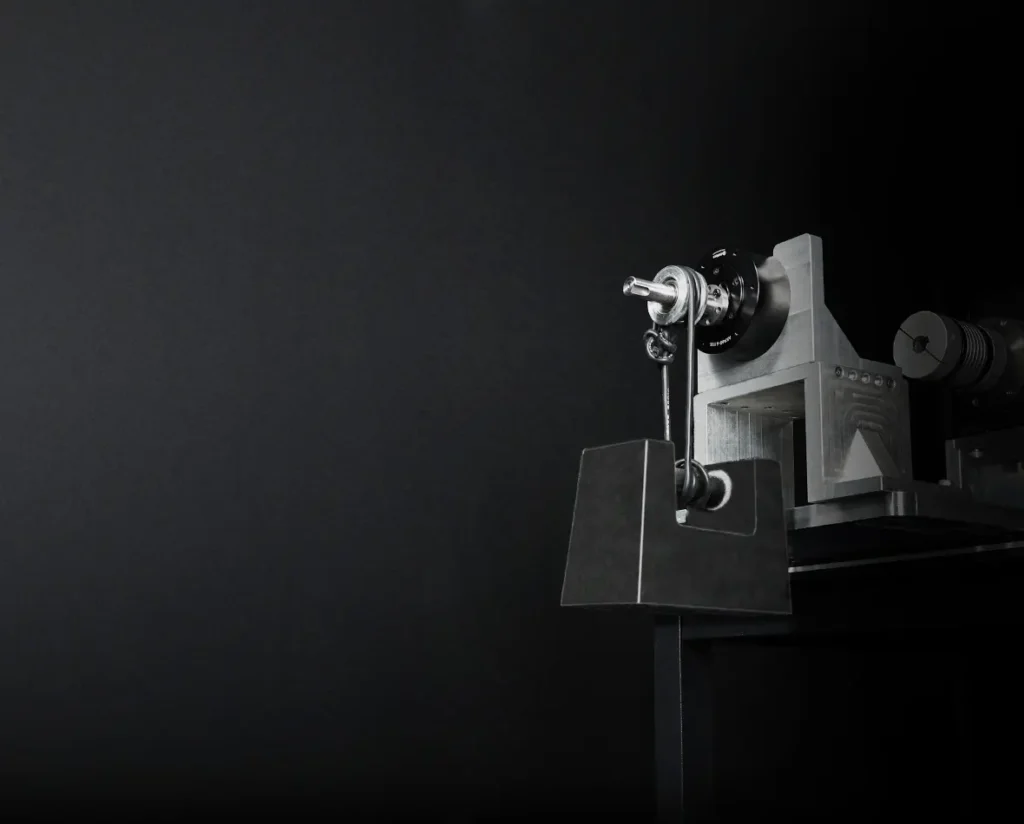

18 kg Radial Load
52 percent more than the AK60-6.
Fully Integrated
Motor, gearbox, driver and encoder in one.

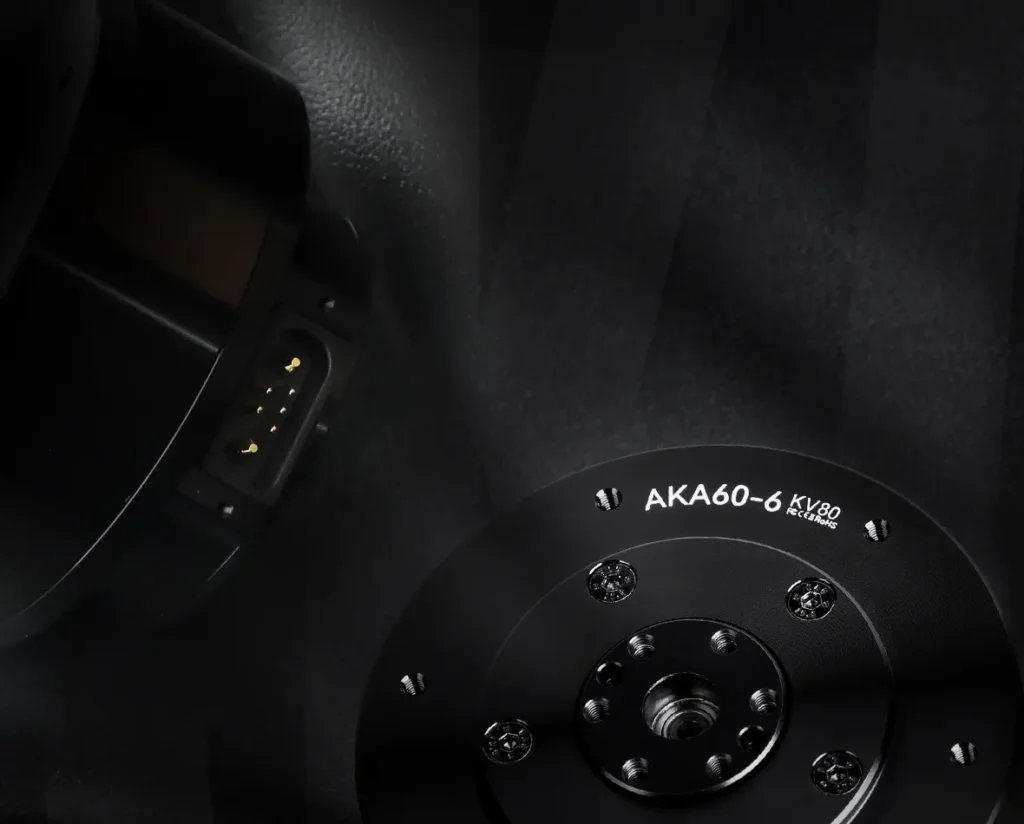

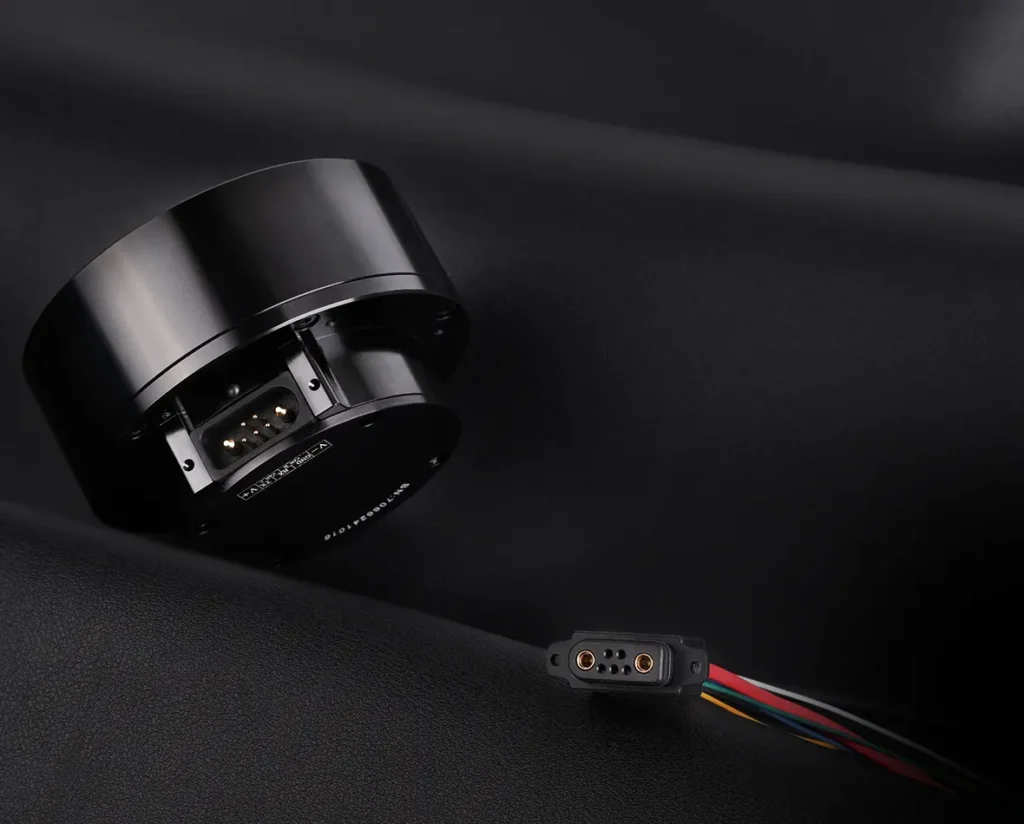

2+5 PIN Connector
Simplified, reliable wiring.
24/48 V
Wide operating voltage range.
Servo + MIT Modes
Flexible motion control.
Protected
Overcurrent, overvoltage and thermal safety.
Technical Specifications
AKA60-6 KV80 Specifications
Verified CubeMars manufacturer specifications for the AKA60-6 KV80.
Applications
Where the AKA60-6 works
Built for compact mobile robots.
AGVs
Compact hub and chassis drive.
Wheeled Robots
Light, high-load wheel actuation.
Service Robots
Reliable joint and base drive.
Research
Modular mobile-platform testbeds.
Why Choose This Product
Why the AKA60-6
Rugged
18 kg radial load.
Light
460 g module.
Easy Install
2+5 PIN connector.
Support
Robomatek engineering assistance included.
Ready to integrate the AKA60-6 KV80?
Talk to our robotics specialists for availability, lead time, and integration support.
