Robotic Actuator / AK45-36 V3.0 KV80
AK45-36 V3.0 KV80 Robotic Actuator
A compact three-in-one module combining motor, planetary gearbox and driver, with a 36:1 reduction and a new dual-encoder design that retains single-turn absolute position after power loss for instant startup.
24 Nm
Peak Torque
8 Nm
Rated Torque
52 rpm
No-load Speed
36:1
Reduction
Product Overview
Compact, high-density power

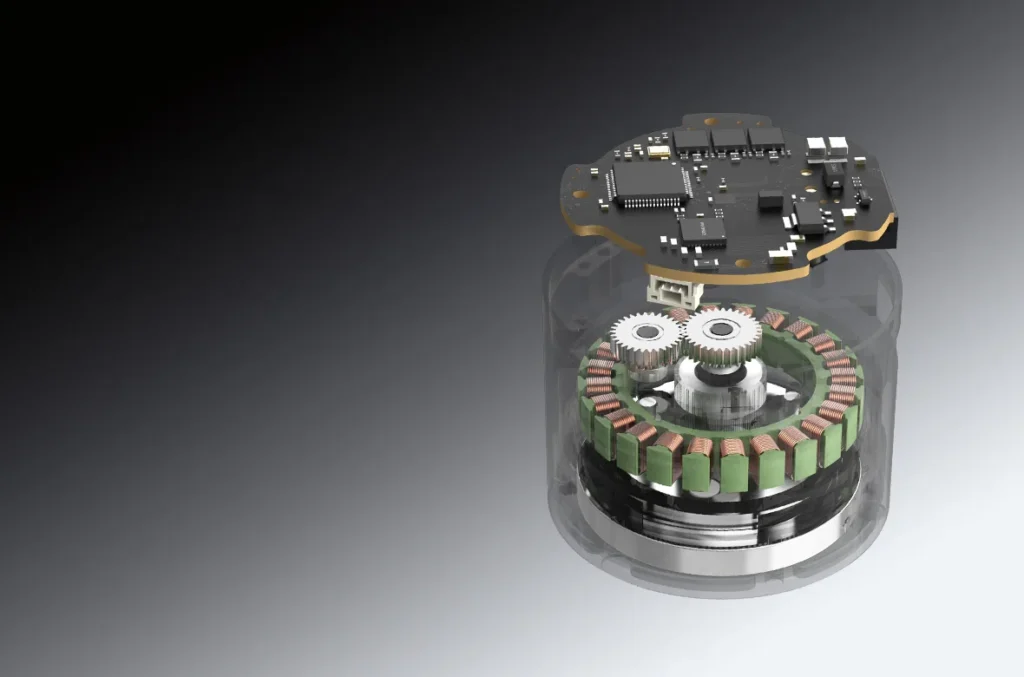

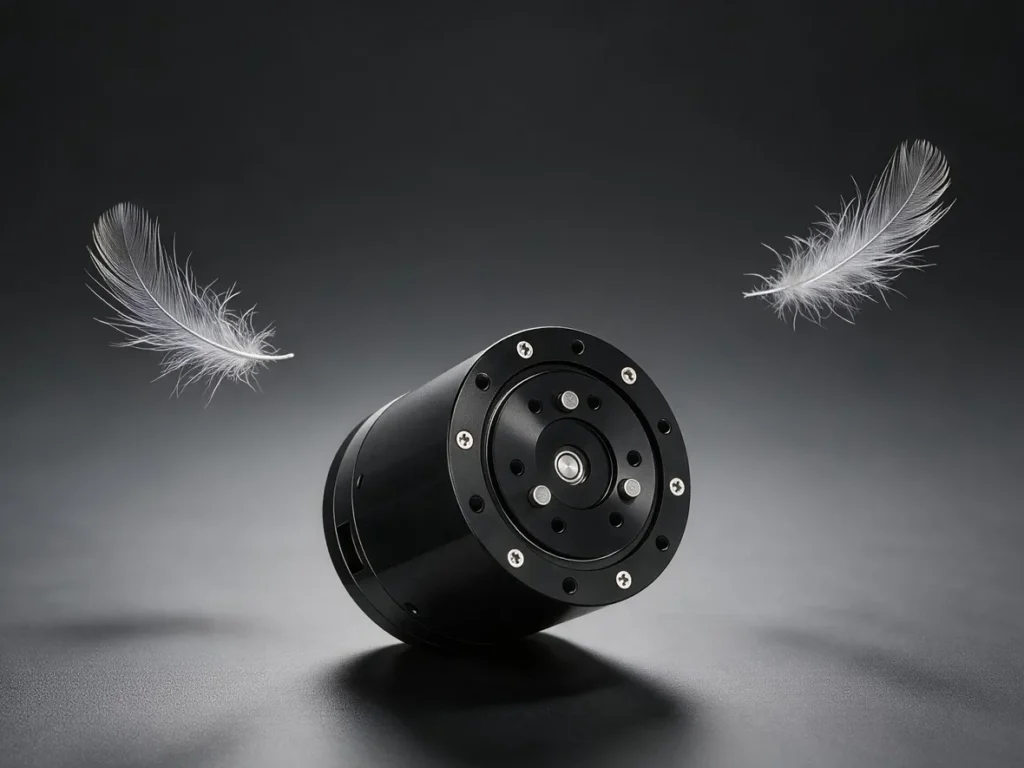

The CubeMars AK45-36 V3.0 KV80 packs a brushless motor, a 36:1 planetary gearbox and a driver into a highly compact all-in-one module. At just 349 g it delivers up to 24 Nm peak torque, giving a high torque density of roughly 68.8 Nm/kg.
Its dual-encoder architecture improves noise immunity and holds single-turn absolute position after power loss, so the joint returns accurately on startup without homing. Servo and MIT modes, auto PID tuning and full protection round out the package.
Features & Benefits
Compact, high-density power
A lightweight humanoid-joint actuator with position memory.
36:1 Reduction
High reduction for strong low-speed torque.
High Density
24 Nm peak at only 349 g.
Dual Encoders
16-bit sensing with single-turn position memory.
Servo and MIT
Flexible control with one-click parameter setup.
Full Protection
Over-current, voltage and thermal safeguards.
Humanoid Joints
Sized for compact humanoid and cobot limbs.
Technical Specifications
AK45-36 V3.0 KV80 Specifications
Verified CubeMars manufacturer specifications for the AK45-36 V3.0 KV80.
Applications
Where the AK45-36 V3.0 works
Built for compact, high-reduction humanoid joints.
Humanoid Robots
Compact limb and wrist joints.
Robotic Arms
High-reduction precision joints.
Exoskeletons
Lightweight assistive actuation.
Research
Repeatable, memory-retaining joints.
Why Choose This Product
Why the AK45-36 V3.0
High Density
24 Nm peak at only 349 g.
Position Memory
Absolute position retained after power loss.
Protected
Full electrical and thermal safeguards.
Support
Robomatek engineering assistance included.
Ready to integrate the AK45-36 V3.0 KV80?
Talk to our robotics specialists for availability, lead time, and integration support.
